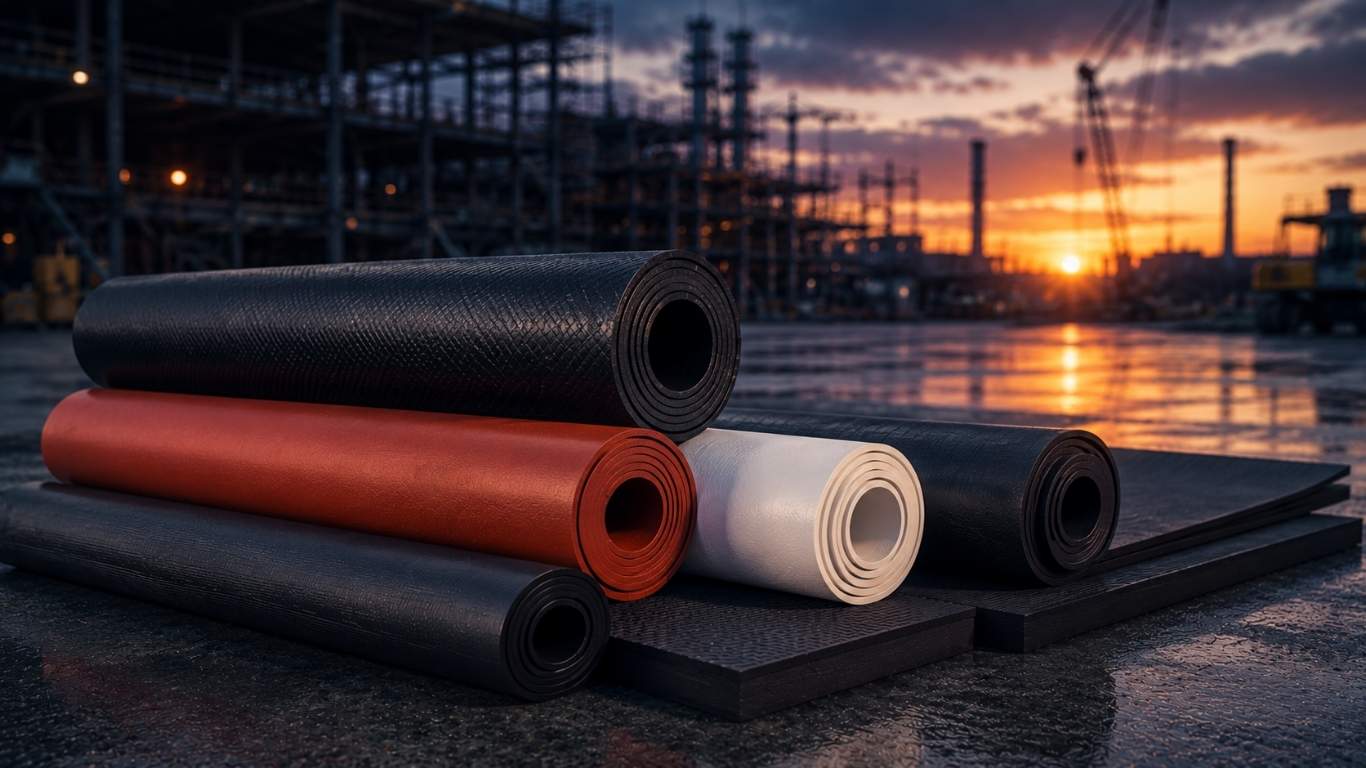

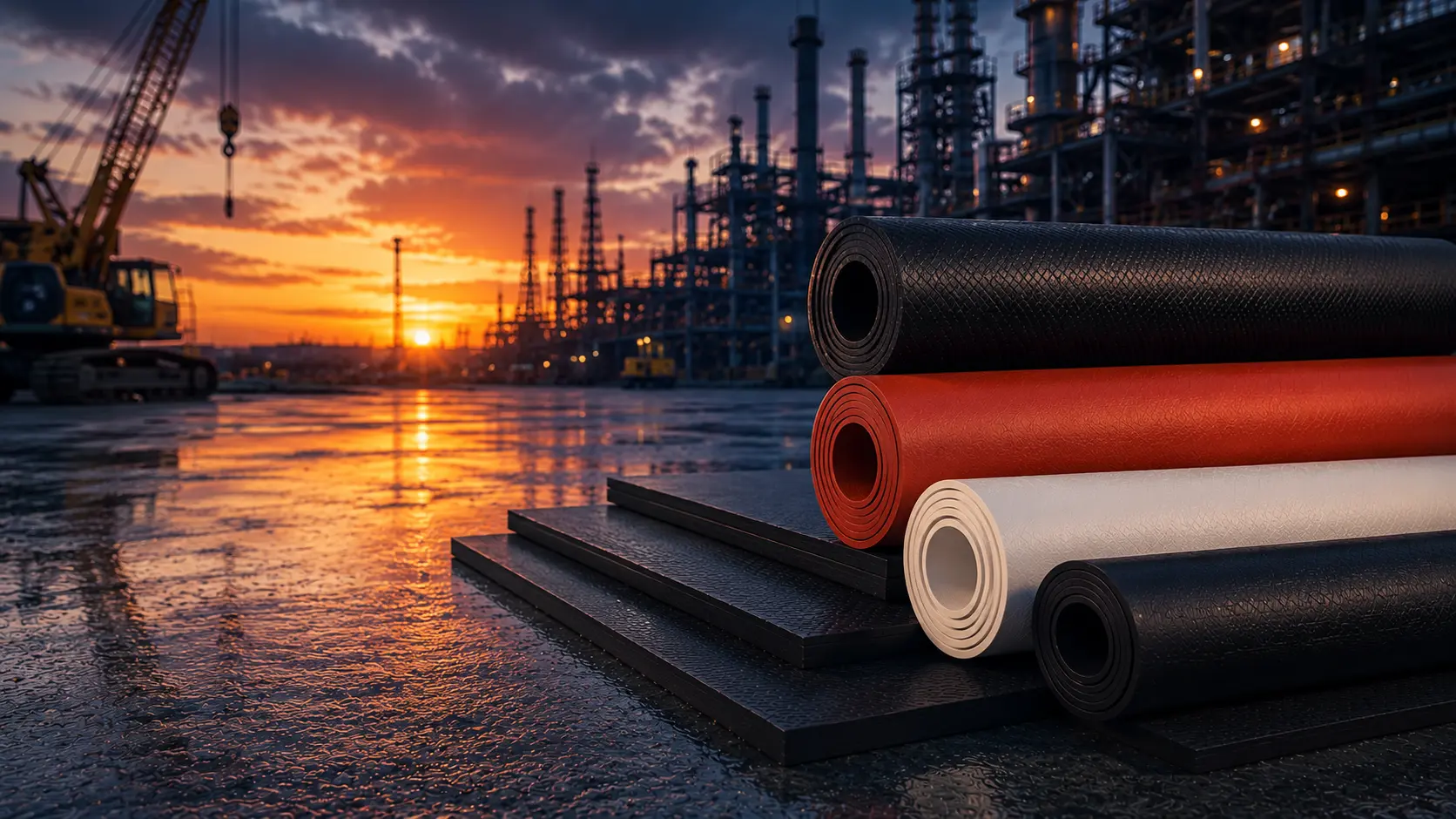

Industrial Rubber Sheets Manufacturing
Home / Products

Rubber Sheets High-Performance Elastomer Elastomers

Premium Elastomer Range

Industrial Grade Sealing & Lining Elastomer Matrices

R.S. Arora Rubber Corporation manufactures and supplies a comprehensive array of premium industrial rubber sheets engineered for high resilience, temperature thresholds, chemical containment, and severe mechanical wear protection across multiple scaling setups.

Standard Dimension Parameters:

  • Standard Length: 10 Mtr / 33 Ft / 11 Yard
  • Standard Widths: 1.2M / 1.4M / 1.5M Options
  • Custom 1 or 2-Ply Fabric Insertions Configurable

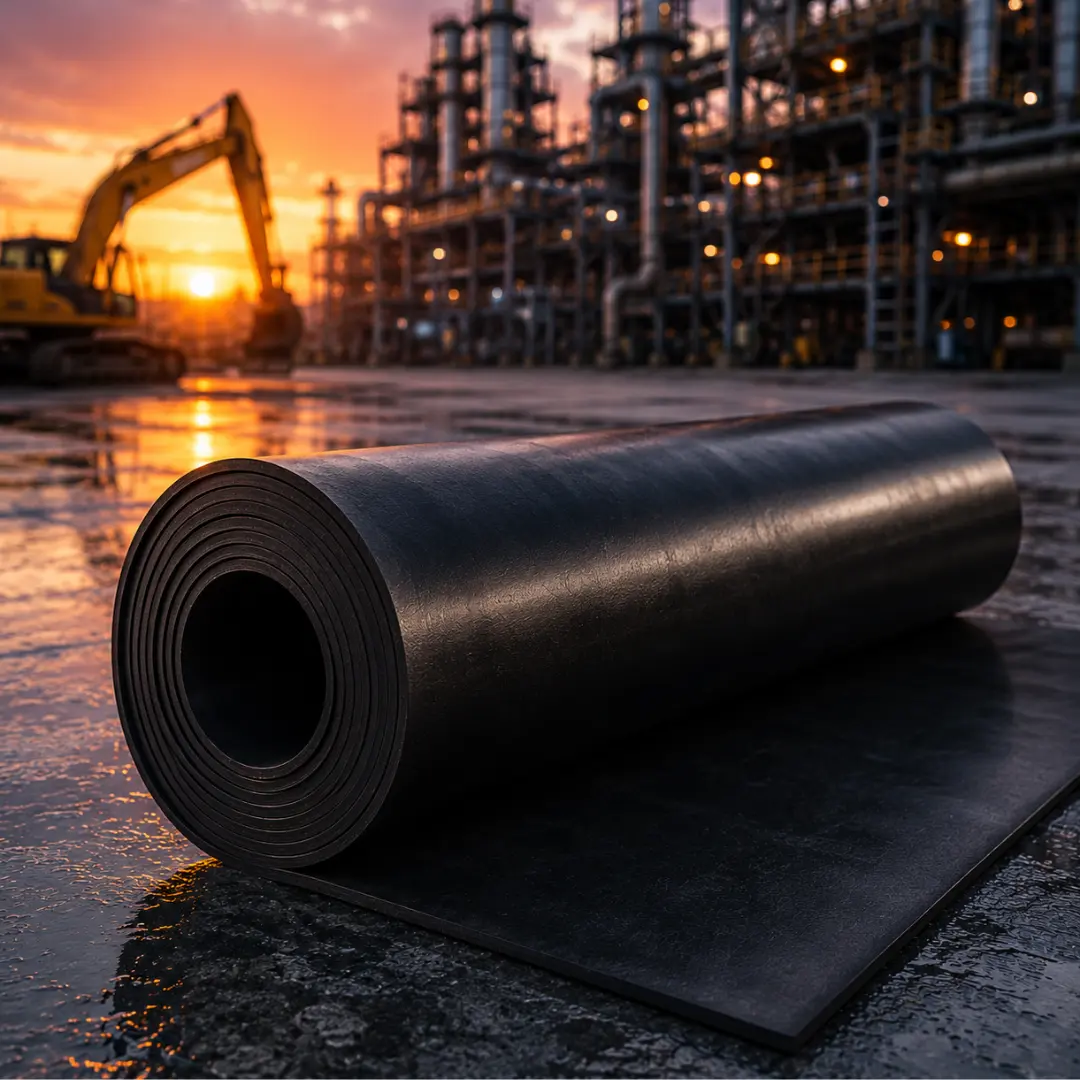

Natural Rubber Sheet
01
High Resilience & Dynamic Rebound

Natural Rubber Sheet (Commercial Grade)

NR or Natural Rubber Poly-isoprene is derived from premium latex liquids. This material features excellent mechanical properties, low compression parameters, and outstanding dynamic resilience. It offers premium handling stability with strong resistance to common acids, alkalis, and inorganic salts, though contact with oils or hydrocarbons should be strictly avoided.

Industry Applications
  • Bridge bearing pad assemblies
  • High tensile tan gum components
  • Material handling equip linings
  • Cotton insertion commercial layout
Technical Specification Matrix
Code Hardness Tensile Elong. Temp.
ARORA Flex 60/65 A 50-80 kg/cm² 300-380% -30°C to +70°C
NR 70/75 70/75 A 35 kg/cm² 250% -30°C to +70°C
Inquire Layout Spec

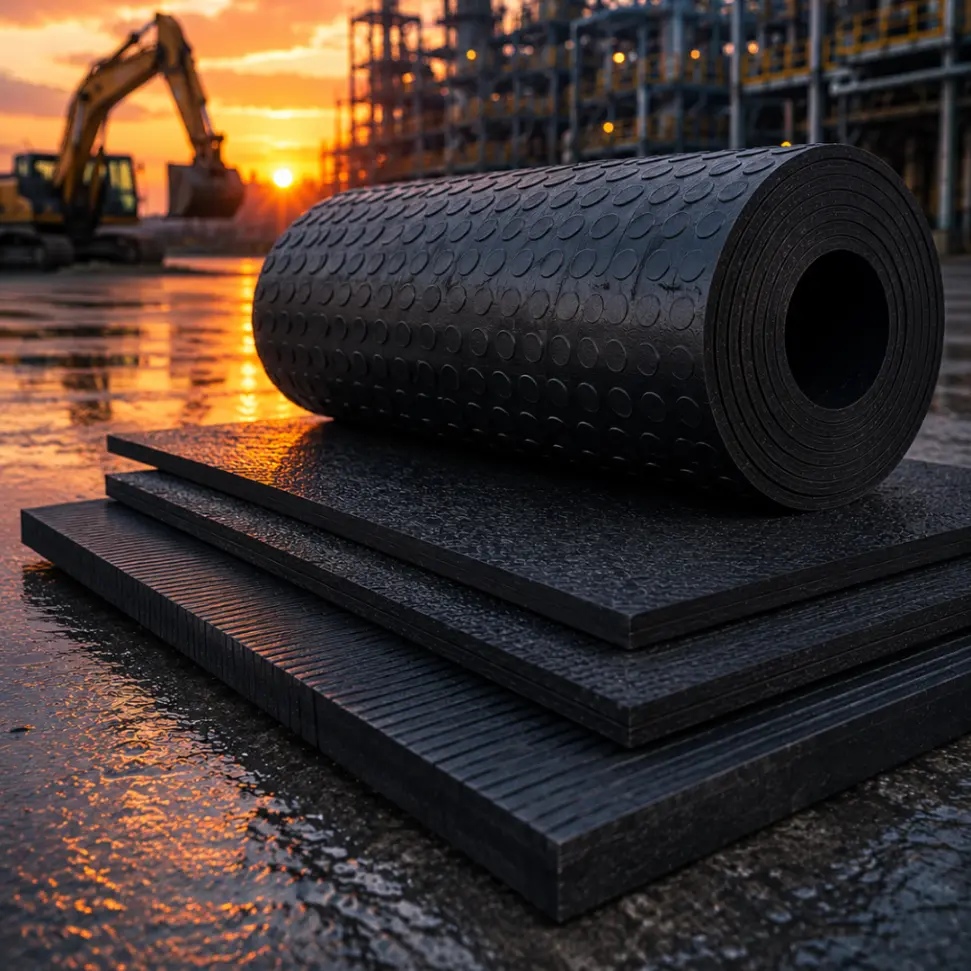

Abrasion Resistant Sheet
02
Extreme Cut & Tear Resistance

Abrasion Resistant Rubber Sheets

These premium-grade technical sheets are compounded utilizing dry natural rubber elements to achieve severe structural threshold support. Engineered specifically to survive aggressive physical impact, high mechanical wear factors, and particle erosion parameters without experiencing surface splitting or structural deterioration.

Industry Applications
  • Mining heavy chute linings
  • Shot blasting enclosure sheets
  • Aggregate material hopper protection
  • High-abrasion pipeline gaskets
Technical Specification Matrix
Code Hardness Tensile Abrasion Color
AB 45150 45 ±5 150 kg/cm² 100 mm³ Red/Yellow
AB 70175 70 ±5 175 kg/cm² 120 mm³ Black
Inquire Layout Spec
Skirtboard Rubber Sheet
03
Conveyor Containment Edge Deflection

Skirt-board Rubber Sheets

Specifically engineered sealing strips optimized for conveyor loading zone side skirts. These sheets prevent structural material spillage, optimize bulk alignment safety parameters, and shield sensitive handling elements from frictional degradation.

Industry Applications
  • Conveyor side skirting containment
  • Bulk transport transfer zone seals
  • Spillage prevention barriers
  • Industrial chute wear edge defense
Technical Specification Matrix
Code Hardness Tensile Elongation Temp. Range
ABE 55100 55 ±5 100 kg/cm² 400% -25°C to +70°C
Inquire Layout Spec

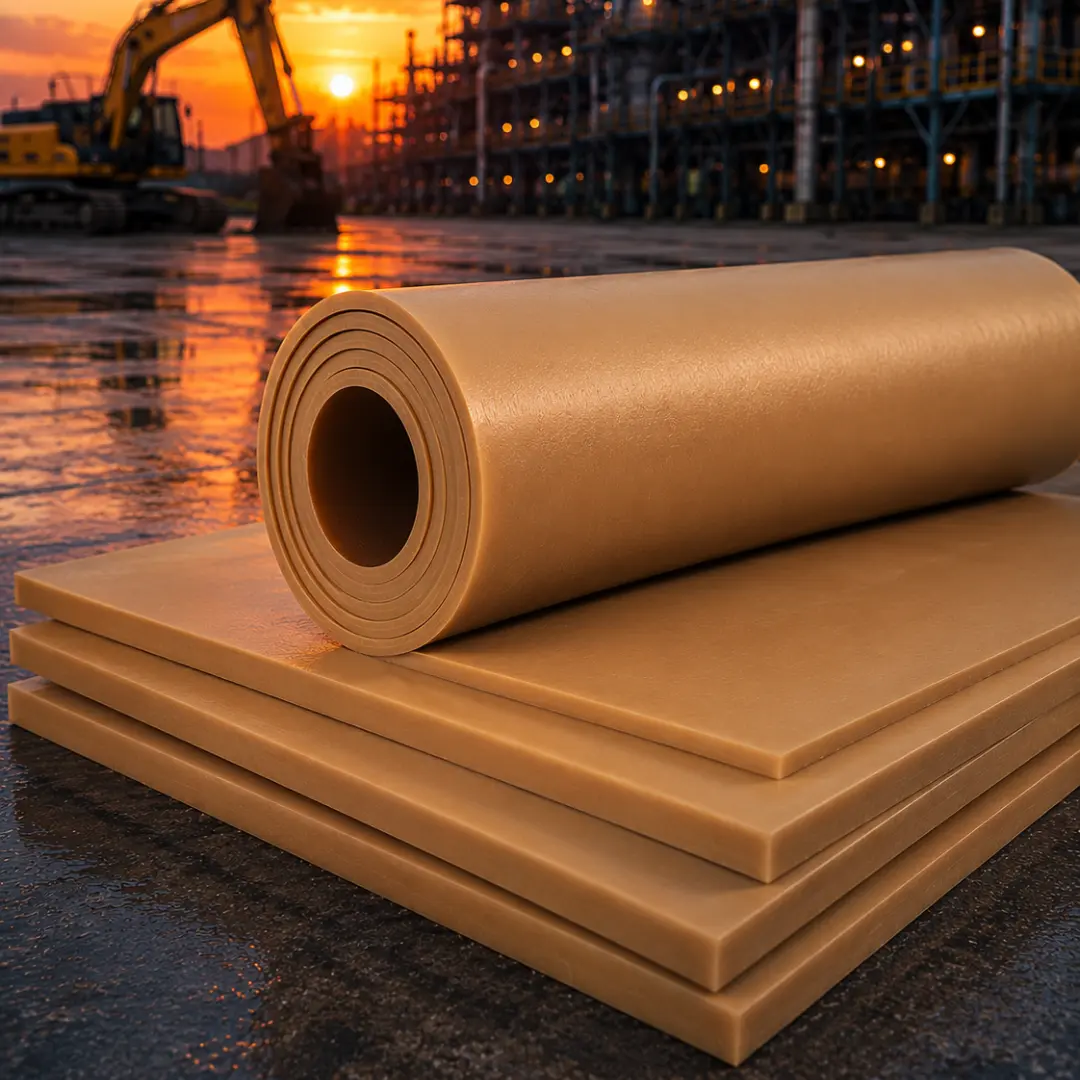

Tangum Sheet
04
High Friction & Non-Slip Grip

Tangum Sheet (Beige / Honey / Tan Gum)

A Tangum Sheet is a high-friction elastomer designed primarily for premium grip, cushioning, and non-slip wear resistance. Featuring a texturized high-traction profile, it is perfect for handling inclined material transportation and ensuring items remain completely stable during high-speed transit operations.

Applications
  • Inclined Conveyor Systems
  • Packaging & Textile Industry
  • Printing & Paper Processing
  • Logistics and Warehousing
Technical Specification Matrix
Code Hardness Tensile Abrasion Colour
TA 40100 40 ±5 100 kg/cm² 150 mm³ Beige/Grey
NR 4075 40 ±5 75 kg/cm² 350 mm³ Red/Pink
Inquire Layout Spec
SBR Food Grade Sheet
05
Pure White Non-Contaminating Matrix

SBR Food Grade Rubber Sheets

Manufactured cleanly to eliminate odor or operational state contamination factors. This hygienic formulation provides excellent surface durability and is explicitly targeted for material handling and processing areas where clean, food-safe containment boundaries are strictly required.

Applications
  • Packaged food sorting lines
  • Bakery and milling seals
  • Cleanroom industrial padding
  • Pharmaceutical packaging zones
Technical Specification Matrix
Code Hardness Tensile Elongation Colour
SB 60150 60 ±5 80 kg/cm² 200% White
Inquire Layout Spec

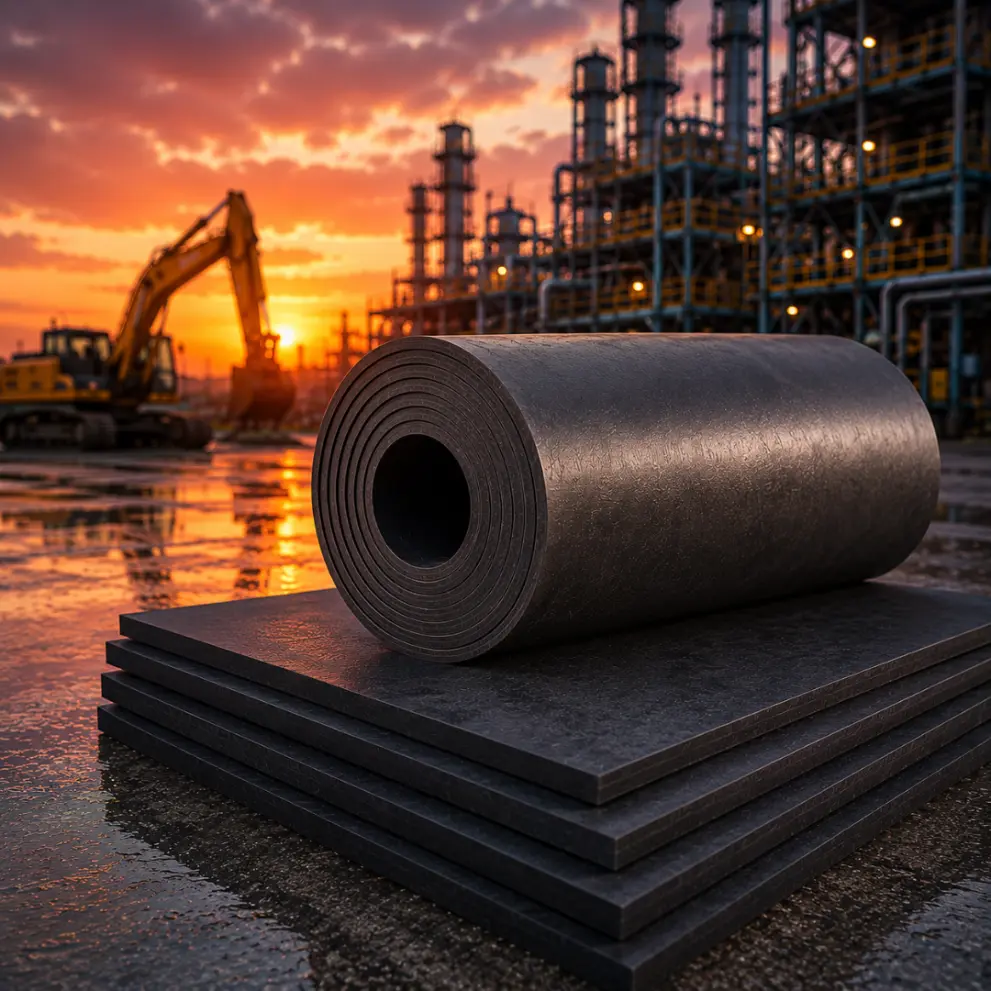

Multi Purpose Rubber Sheet
06
Versatile General Engineering Layout

Multi Purpose Rubber Sheet

A robust, general-purpose elastomer configuration designed for versatile commercial installations. Possessing balanced mechanical ratings, it acts as an ideal economic alternative for non-specialized shielding, general flange gaskets, buffer padding, and baseline isolation strips.

Applications
  • General commercial gaskets
  • Structural barrier insulation
  • Low-pressure utility seals
  • Protective workspace workbench liners
Technical Specification Matrix
Code Hardness Tensile Elongation Temp. Range
MP 7040 70 ±5 40 kg/cm² 225% -20°C to +80°C
Inquire Layout Spec

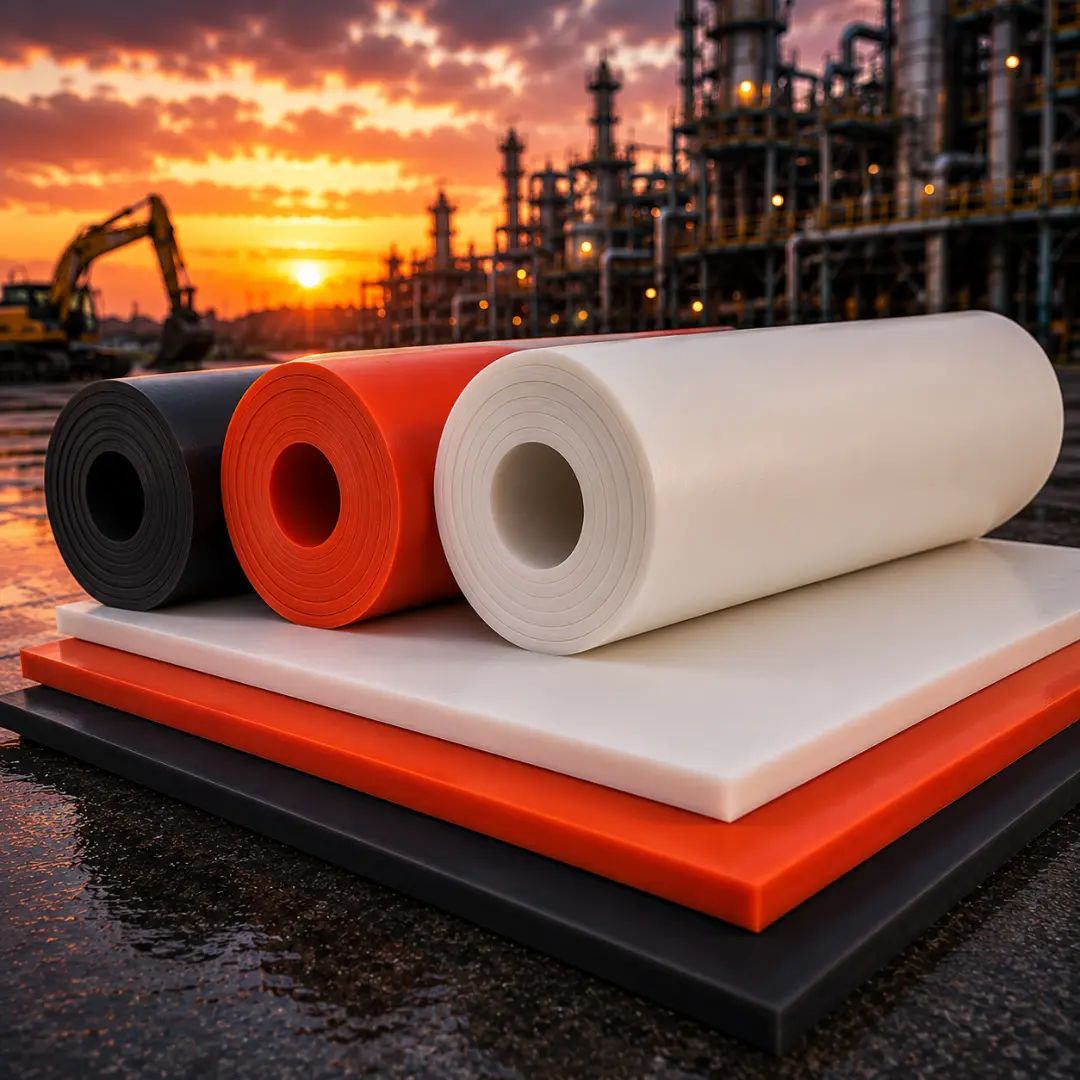

Silicone Rubber Sheet Spec
07
Extreme Temperature Threshold

Silicone Rubber Sheet

Silicone Rubber is physiologically inert, making it the preferred choice for medical, pharmaceutical, and food processing applications. It displays excellent dry air heat resistance, remains highly flexible down to extreme sub-zero conditions, and offers outstanding defense against weathering, UV light, and ozone. It also exhibits low inflammability and low smoke toxicity factors.

Applications
  • High-temperature gaskets & seals
  • Thermal & electrical insulation pads
  • Vacuum press membrane layers
  • Food & industrial non-stick surfaces
Technical Specification Matrix
Code Hardness Tensile Temp. Range Colour
SI 5090 50 ±5 90 kg/cm² -90°C to +200°C Translucent
SI 6060 60 ±5 60 kg/cm² -90°C to +200°C Red/White
Inquire Layout Spec
Nitrile Rubber Sheet Spec
08
Premium Petrochemical Defense

Nitrile Rubber Sheet (Special & Food Grade)

Nitrile (Acrylonitrile Butadiene) Rubber offers exceptional general resistance to petroleum products, industrial oils, and fuels, paired with superior compression set traits and gas impermeability features. Highly recommended for robust sealing thresholds where contact with standard hydrocarbons is expected.

Applications
  • Oil & fuel resistant seals/gaskets
  • Hydraulic & industrial padding liners
  • Refinery & oilfield containment setups
  • Food processing oil-safe grades
Technical Specification Matrix
Code Hardness Tensile Oil Swell Max Temp. Range
Arora Trile 6050 60/70 A 50 kg/cm² 75% -30°C to +90°C
Arora NB 6050 (Food) 60 ±5 50 kg/cm² 75% -30°C to +90°C
Inquire Layout Spec

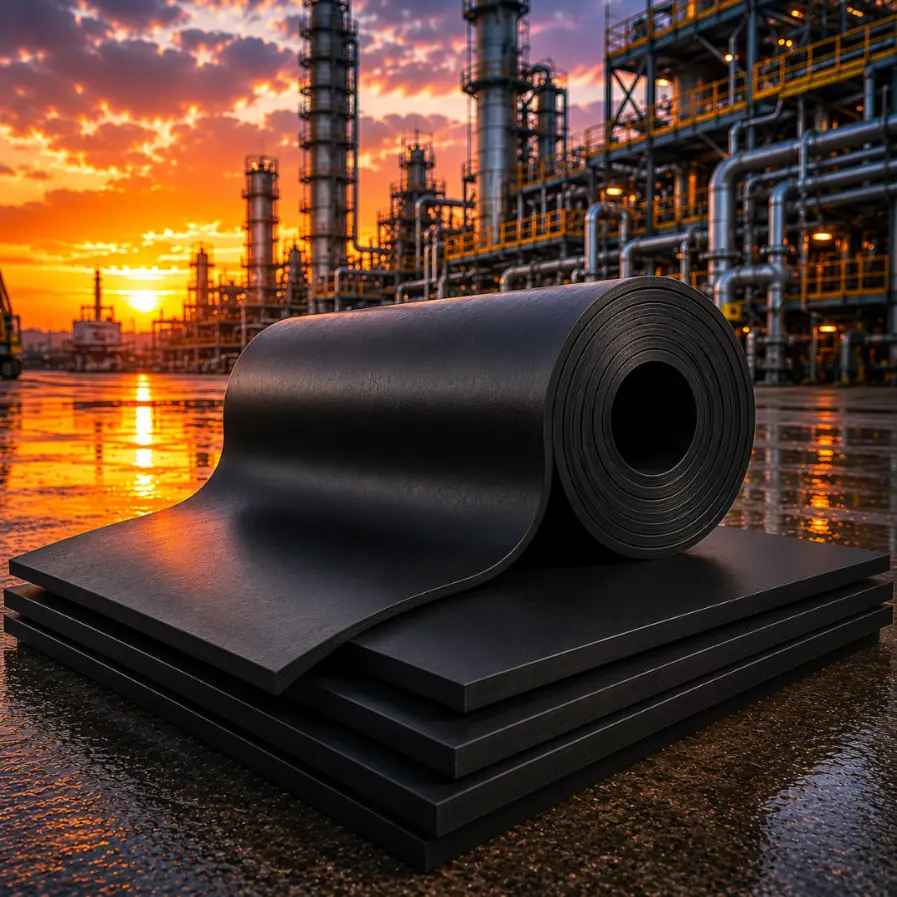

Neoprene Rubber Sheet Spec
09
Versatile Environmental Resistance

Neoprene Rubber Sheet (Commercial Grade)

Chloroprene (Neoprene®) is a premium homopolymer offering excellent mechanical, weathering, and abrasion properties even without reinforcing fillers. It displays good resilience in grades over 60° Shore A, high adhesion to metal elements, and robust protection against oils, heat, ozone, and salt-water exposure. Flame retardant configurations are also available upon order request.

Industry Applications
  • Automotive & marine gaskets / mounts
  • HVAC weather stripping & insulation lines
  • Dock bumpers & protective hatch seals
  • Cable jackets & flame-resistant mats
Technical Specification Matrix
Code Hardness Tensile Elongation Temp. Range
Arora NE 6570 65/55 A 70 kg/cm² 300% -25°C to +100°C
Arora NE 7040 60/70 A 40 kg/cm² 250% -35°C to +80°C
Inquire Layout Spec
EPDM Rubber Sheet Spec
10
Outstanding Outdoor UV Defense

EPDM Rubber Sheet

Ethylene Propylene Diene Monomer (EPDM) possesses a superb operating temperature envelope alongside high resistance to oxidation, ozone, and aggressive UV rays. It is highly recommended for direct outdoor industrial installations, roofing membranes, and corrosive chemical isolation setups, though it lacks resistance against heavy oils.

Applications
  • Commercial & flat roof membranes
  • Door, window, & outdoor enclosure seals
  • Artificial pond & pool liner sheets
  • Heavy industrial HVAC dampening pads
Technical Specification Matrix
Code / Grade Hardness Tensile Comp. Set Temp. Range
EP100 (Comm.) 60 A 80 kg/cm² 50% -30°C to +100°C
EP5090 (Special) 50-70 A 90-80 kg/cm² 30% -30°C to +130°C
EP6050 (Food) 60 A 50 kg/cm² 40% -25°C to +140°C
Inquire Layout Spec

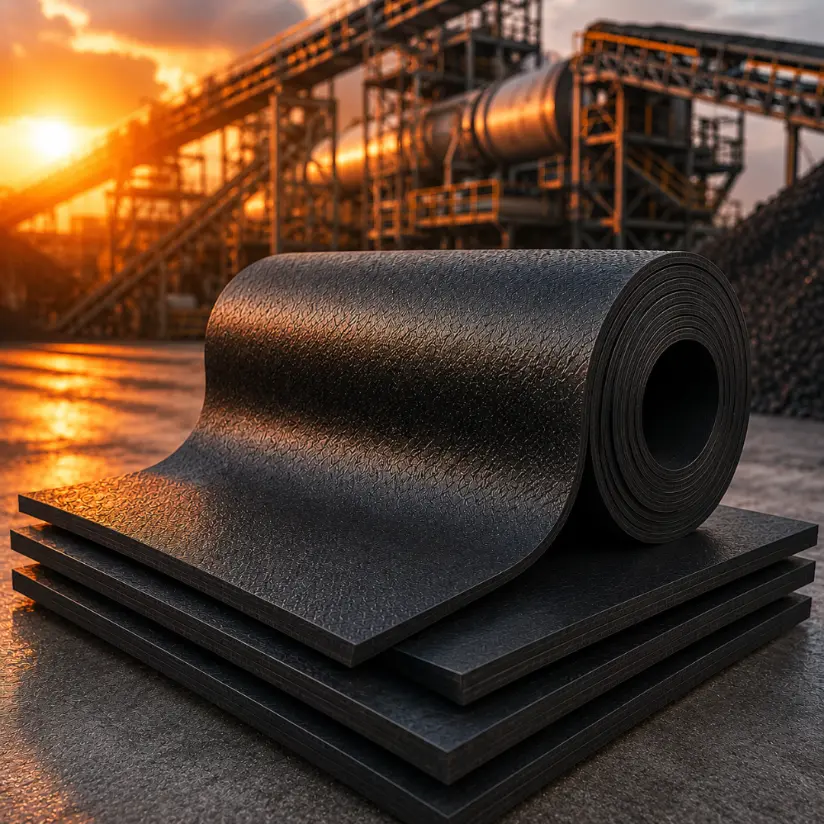

Abra Super Rubber Sheet Spec
11
Premium Mechanical Wear Performance

Abra-Super® High Abrasion Sheet

Abra-Super® sheets employ premium-grade pure natural rubber engineered for unparalleled abrasion, impact, and corrosion resistance across mining-intensive setups. Formulated with highly refined compound parameters, each sheet provides extraordinary elongation limits, extreme tensile strength, and cut-and-tear thresholds that outperform conventional synthetic or natural alternatives.

Industry Applications
  • Lining ore chutes, silos, & heavy hoppers
  • Slurry processing pipelines & pump liners
  • Conveyor skirting segments & impact pads
  • Shot blasting chamber wall shielding layers
Technical Specification Matrix
Code Hardness Tensile Elongation Colour
ABRA Super 40 38 A 240 kg/cm² 810% Pink / Blue / Orange
ABRA R 60 60 A 270 kg/cm² 700% Red
Inquire Layout Spec

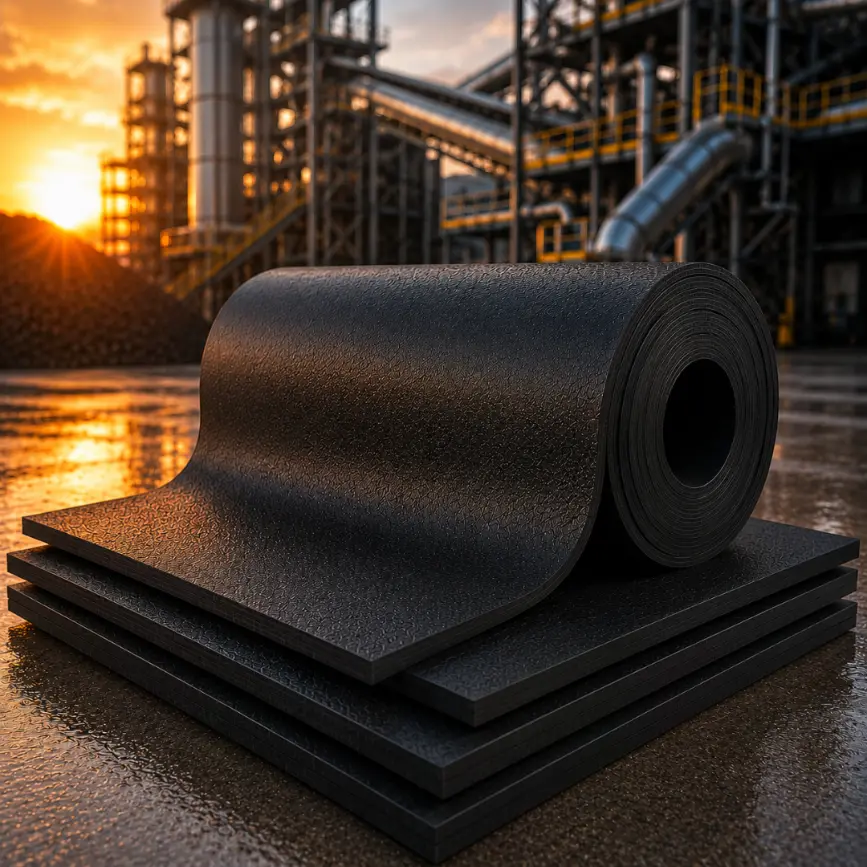

Shot Blasting Rubber Sheet Spec
12
Impact Resistance & High Elasticity

Aroratuff Shot Blasting Rubber Sheet

Aroratuff Shot Blasting Rubber Sheet is a premium blended natural and synthetic rubber sheet offering outstanding mechanical strength, cut resistance, and tear performance. Engineered primarily for high-speed particle impacts, it provides elite defense metrics inside intensive sandblasting environments alongside excellent resistance to mild acids and alkalis.

Industry Applications
  • Heavy-duty skirting & conveyor lagging
  • Shot blasting impact and dust curtains
  • Industrial dust deflector panels & chassis
  • Highly versatile high-impact seals
Technical Specification Matrix
Code Polymer Hardness Tensile Abrasion
RSA11555P NR/PBR 55° ±5° 15 MPa 70 mm³
RSA11040P NR/PBR 40° ±5° 17 MPa 85 mm³
Inquire Layout Spec

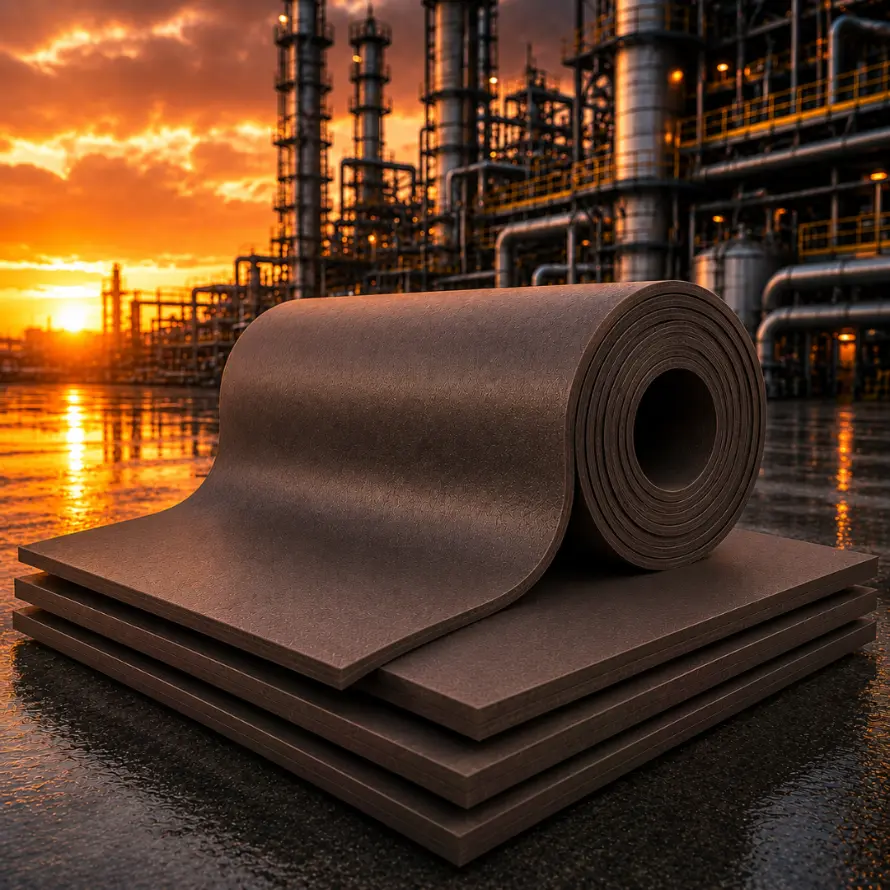

Viton Rubber Sheet Spec
13
Extreme Chemical & Thermal Defense

Fluoro Elastomer Rubber Sheets (Viton®)

Fluoro Elastomer (FKM) rubber sheets are engineered for exceptionally demanding environments prone to high chemical degradation and severe heat spikes up to +250°C. It provides outstanding resistance against hydrocarbons, chlorinated chemical structures, oxidants, ozone, and natural weathering to guarantee a prolonged industrial lifecycle.

Applications
  • Aerospace fuel system gaskets & O-rings
  • Chemical refinery pipe & tank linings
  • Automotive fuel hoses & engine seals
  • Oil & gas refinery packings / expansion joints
Technical Specification Matrix
Code Hardness Tensile Compression Set Temp. Range
ARORA V 7050 70 ±5 5 kg/cm² 45% -30°C to +250°C
Inquire Layout Spec
