Hydraulic Hose Product Range

Premium quality hydraulic hoses engineered for high-pressure fluid transfer applications across construction, mining, agriculture, earthmoving, industrial machinery and hydraulic systems.

Home / Hydraulic Hose
Hydraulic Hose Range

Heavy Duty Hydraulic Hose Solutions

Indo-Maksson Hydraulic Hoses are manufactured using premium-grade synthetic rubber compounds and reinforced with high tensile steel wire braiding for exceptional pressure handling capability and service life.

Designed for hydraulic oil, petroleum-based fluids and industrial applications, our hose range meets global standards and delivers reliable performance under the toughest operating conditions.

Hydraulic Hose
Hydraulic Hose

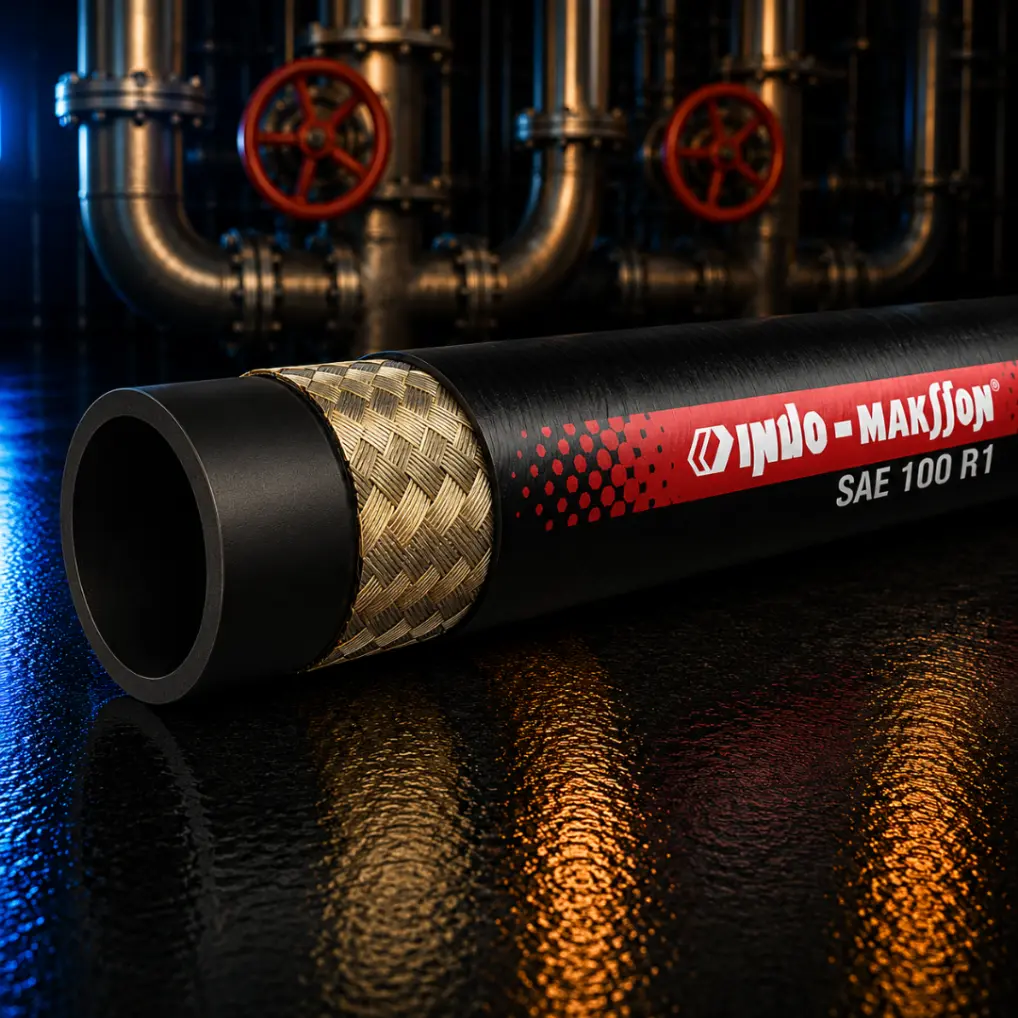

SAE 100 R1 AT

SAE 100 R1 AT

Technical Specifications

TUBE: Black, Oil Resistant Synthetic Rubber (NBR)
REINFORCEMENT: Single Braided High Tensile Steel Wire
COVER: Black, Oil & Abrasion Resistant Synthetic Rubber
TEMP RANGE: -40°C to +100°C (+120°C Intermittent)
APPLICATIONS: Medium To High Pressure Hydraulic Lines For Earthmoving And Industrial Applications
PROPERTIES: Uniform Thickness | High Pressure | Flexible
STANDARD: SAE 100 R1 AT / DIN EN853 1SN
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – SAE 100 R1 I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM INCH KG/MTR MTR
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS WEIGHT MAX LENGTH
6.00 1/4 13.40 225 3263 900 13050 100 3.90 0.25 100+
8.00 5/16 15.00 215 3118 860 12470 115 4.50 0.27 100+
10.00 3/8 17.40 180 2610 720 10440 127 5.00 0.34 100+
12.00 1/2 20.50 160 2320 640 9280 178 7.00 0.455 100+
16.00 5/8 23.70 130 1885 520 7540 200 7.90 0.550 100+
20.00 3/4 27.70 105 1523 420 6090 241 9.50 0.675 100+
25.00 1 35.80 88 1276 352 5104 300 11.80 1.025 100
31.00 1.1/4 44.80 63 914 252 3654 420 16.50 1.250 50
38.00 1.1/2 50.40 50 725 200 2900 500 19.70 1.45 40
50.00 2 63.50 40 580 160 2320 635 25 2.00 40
Hydraulic Hose

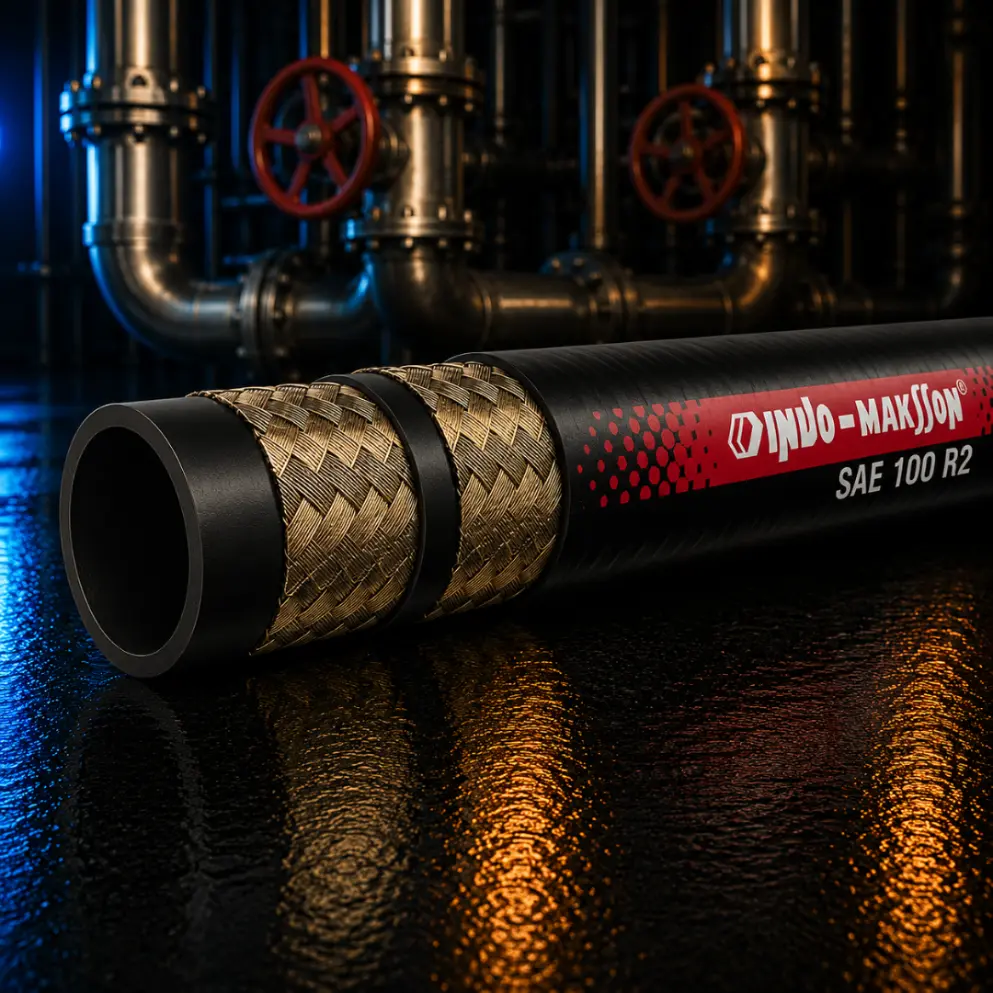

SAE 100 R2 AT

SAE 100 R2 AT

Technical Specifications

TUBE: Black, Oil Resistant Synthetic Rubber (NBR)
REINFORCEMENT: Double Braided High Tensile Steel Wire
COVER: Black, Oil & Abrasion Resistant Synthetic Rubber
TEMP RANGE: -40°C to +100°C (+120°C Intermittent)
APPLICATIONS: For High Pressure Hydraulic Lines Applied In Various Applications Like Earthmoving And Other Industries
PROPERTIES: Uniform Thickness | High Pressure | Flexible
STANDARD: SAE 100 R2 AT / DIN EN853 2SN
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – SAE 100 R2 I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM INCH KG/MTR MTR
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS WEIGHT MAX LENGTH
6.00 1/4 15.00 400 5800 1600 23200 100 3.90 0.35 100+
8.00 5/16 16.00 350 5075 1400 20300 115 4.50 0.40 100+
10.00 3/8 19.00 330 4785 1320 19140 127 5.00 0.50 100+
12.00 1/2 22.00 275 3988 1100 15950 178 7.00 0.65 100+
16.00 5/8 25.00 250 3625 1000 14500 200 7.90 0.80 100+
20.00 3/4 29.40 215 3118 860 12470 241 9.50 0.94 100+
25.00 1 37.60 165 2393 660 9570 300 11.80 1.36 100
31.00 1.1/4 48.30 125 1813 500 7250 420 16.50 1.90 50
38.00 1.1/2 54.70 90 1305 360 5220 500 19.70 2.30 50
50.00 2 67.50 80 1160 320 4640 635 25 2.95 40
Hydraulic Hose

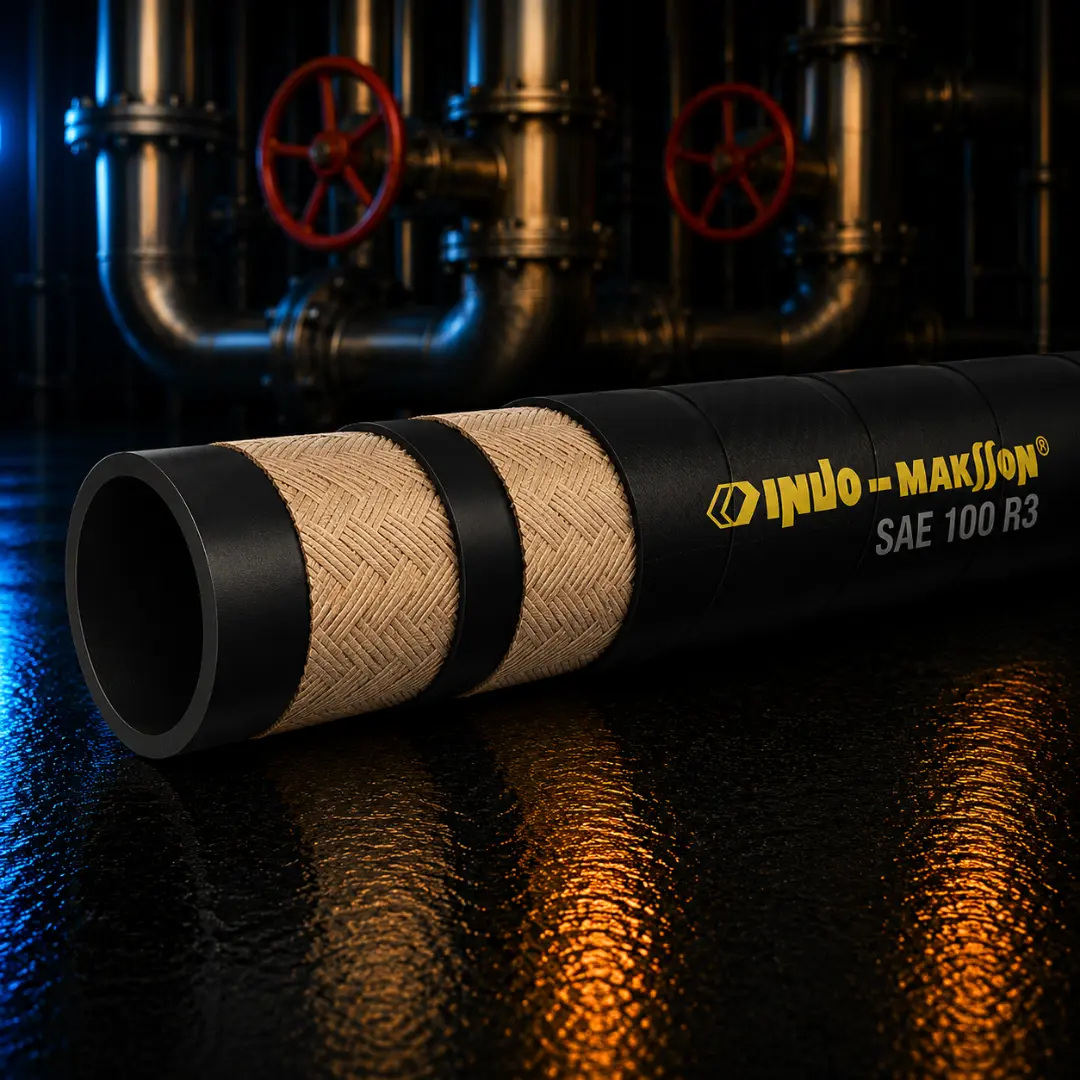

SAE 100 R3

SAE 100 R3

Technical Specifications

TUBE: Black, Oil Resistant Synthetic Rubber (NBR)
REINFORCEMENT: Double Braided High Tensile Yarn
COVER: Black, Oil & Abrasion Resistant Synthetic Rubber
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: For Medium Pressure Hydraulic Lines Applied In Various Applications Like Earthmoving And Other Adjacent Industries
PROPERTIES: Uniform Thickness | High Pressure | Flexible
STANDARD: SAE 100 R3 / DIN EN854
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – SAE 100 R3 I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM INCH KG/MTR MTR
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS WEIGHT MAX LENGTH
6.00 1/4 14.30 87 1250 348 5046 76 3.00 0.16 100+
8.00 5/16 17.50 84 1218 336 4872 101 4.00 0.24 100+
10.00 3/8 19.10 78 1131 312 4524 101 4.00 0.28 100+
12.00 1/2 23.50 70 1015 280 4060 127 5.00 0.38 100+
16.00 5/8 27.00 61 885 244 3538 140 5.50 0.45 100+
20.00 3/4 31.80 52 754 208 3016 152 6.00 0.63 100+
25.00 1 38.00 39 566 156 2250 205 8.00 0.75 100
31.00 1.1/4 44.50 26 377 104 1500 254 10.00 0.97 50
Hydraulic Hose

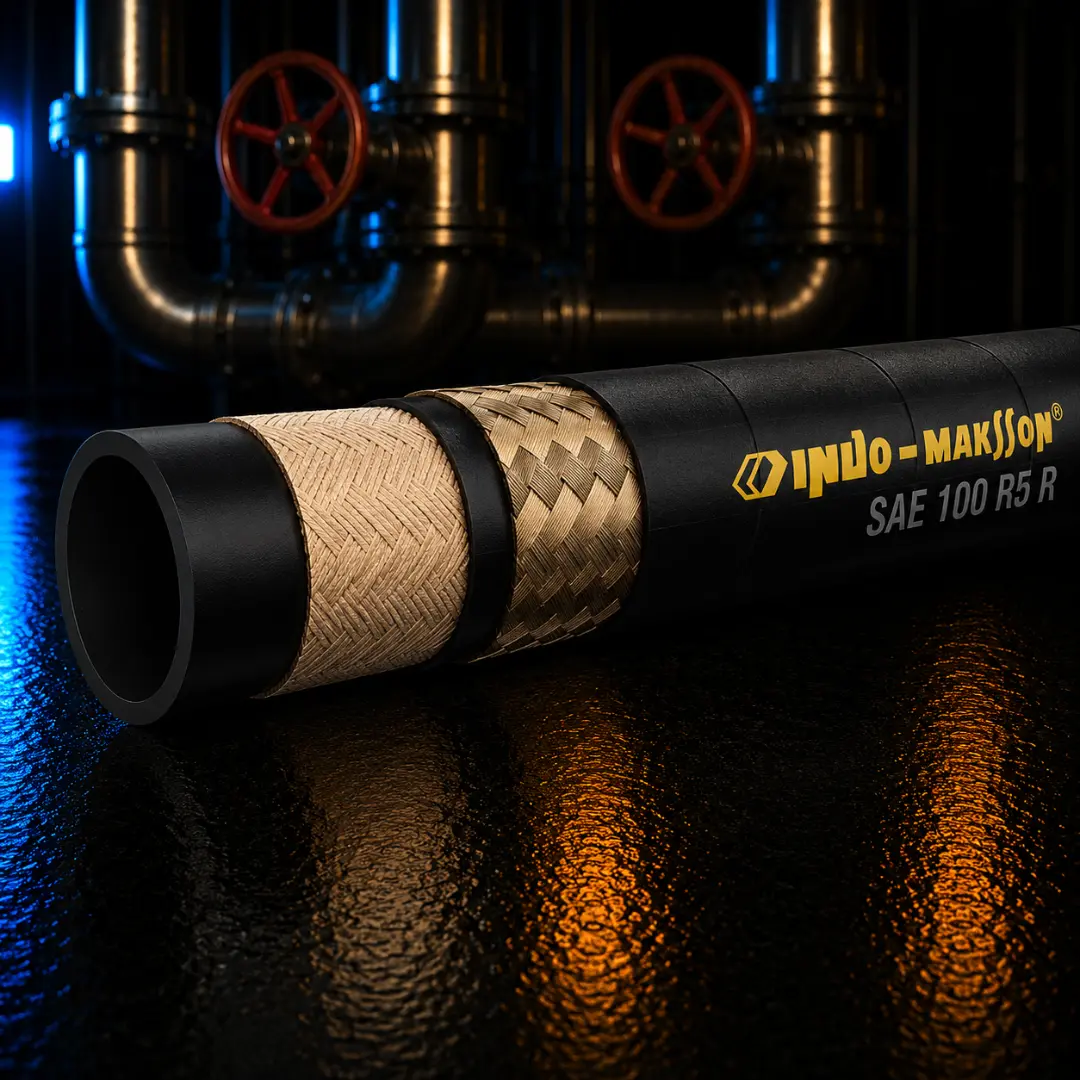

SAE 100 R5R

SAE 100 R5R

Technical Specifications

TUBE: Black, Oil Resistant NBR Tube
REINFORCEMENT: Single Braided High Tensile Steel Wire Over One Braid Of Yarn
COVER: Oil Resistant Rubber Impregnated Cover
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: For Medium Pressure Oil Lubrication System In Railway Diesel Engine
PROPERTIES: Medium Temperature | Uniform Thickness | Flexible
STANDARD: SAE 100 R5 R
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – SAE 100 R5 R I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM INCH
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS
4.80 3/16 13.20 210 3045 840 12180 76 3.00
6.40 1/4 14.80 210 3045 840 12180 86 3.40
7.90 5/16 17.20 157 2277 628 9106 101 4.00
10.30 13/32 19.50 140 2030 560 8120 117 4.60
12.70 1/2 23.40 122 1769 488 7076 140 5.50
15.90 5/8 27.40 105 1522 420 6090 165 6.50
22.20 7/8 31.40 56 812 224 3248 188 7.40
28.90 1.1/8 38.10 43 624 172 2494 229 9.00
34.90 1.3/8 44.50 35 508 140 2030 267 10.50
46.00 1.12/16 58.90 24 348 96 1392 338 13.30
Hydraulic Hose

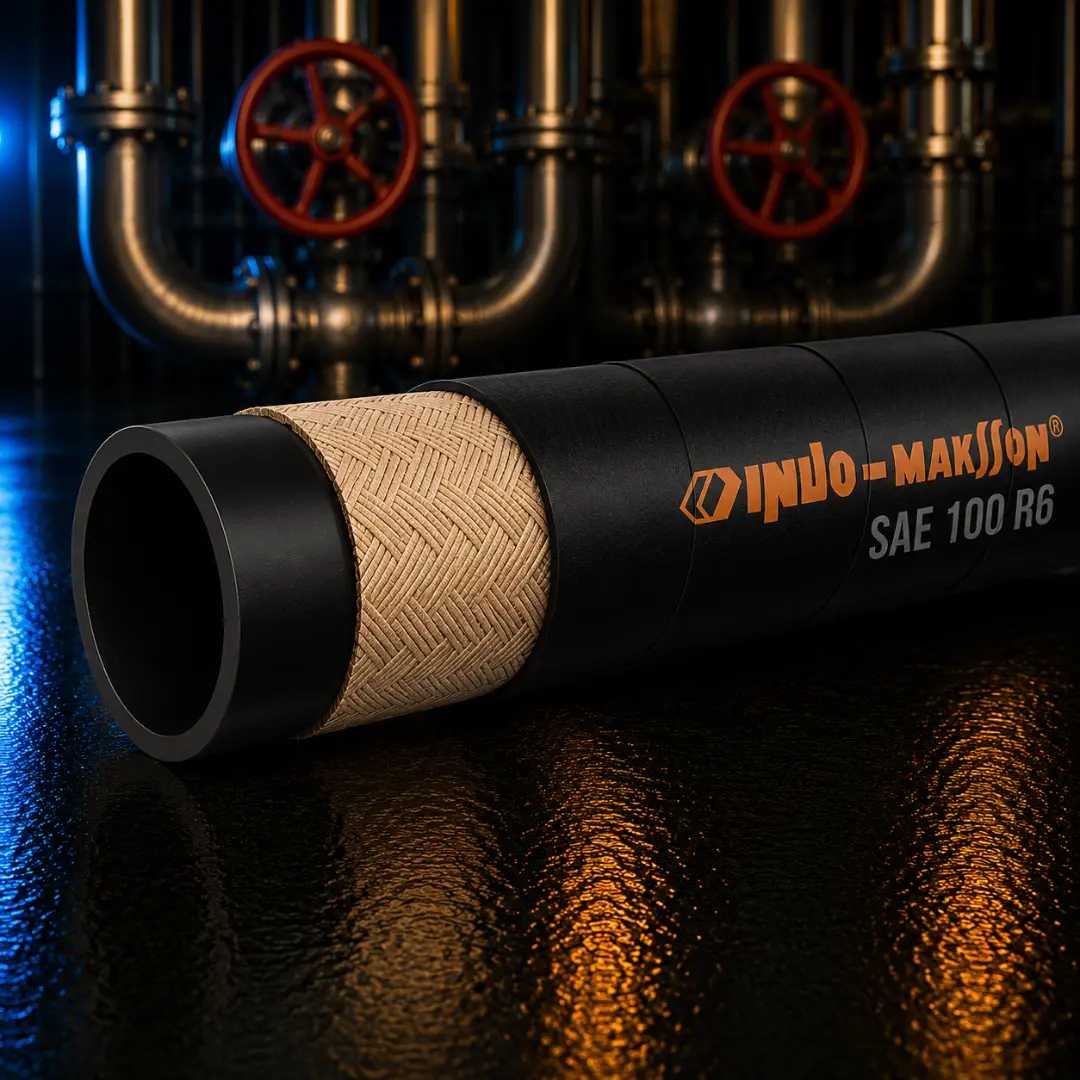

SAE 100 R6

SAE 100 R6

Technical Specifications

TUBE: Black, Oil Resistant Synthetic Rubber (NBR)
REINFORCEMENT: Single Braided High Tensile Yarn
COVER: Black, Oil & Abrasion Resistant Synthetic Rubber
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: For Low Pressure Hydraulic Lines Applied In Various Applications Like Earthmoving And Other Adjacent Industries
PROPERTIES: Uniform Thickness | High Pressure | Flexible
STANDARD: SAE 100 R6 / DIN EN854
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – SAE 100 R6 I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM INCH KG/MTR MTR
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS WEIGHT MAX LENGTH
6.00 1/4 12.70 28 406 112 1624 65 2.6 0.13 100+
8.00 5/16 14.30 28 406 112 1624 75 3.0 0.15 100+
10.00 3/8 16.00 28 406 112 1624 75 3.0 0.18 100+
12.00 1/2 19.80 28 406 112 1624 100 3.9 0.28 100+
16.00 5/8 23.10 24 348 97 1400 125 4.9 0.32 100+
20.00 3/4 26.60 21 305 83 1392 150 5.9 0.43 100+
25.00 1 32.50 14 210 56 1218 200 7.9 0.56 100
Industrial Hose

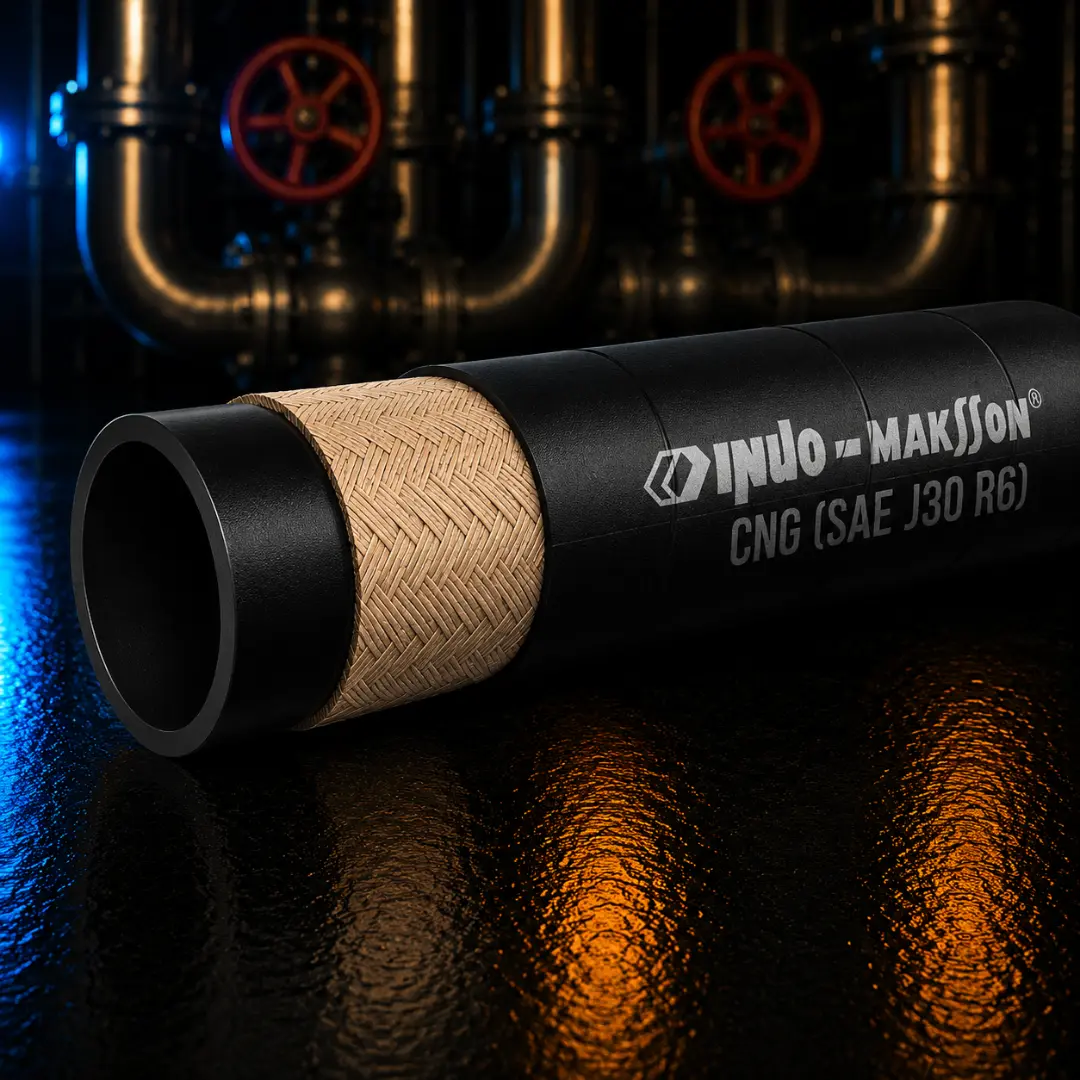

CNG HOSE

CNG HOSE

Technical Specifications

TUBE: Low Permeation Synthetic Rubber
REINFORCEMENT: Single Braided High Tensile Yarn
COVER: Perforated Synthetic Rubber Cover
TEMP RANGE: -40°C to +100°C Approx
APPLICATIONS: For Use In Motor Vehicles With CNG Installations
PROPERTIES: Resistant To Methane & Other Alkanes | Uniform Thickness | Flexible
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – CNG Hose I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM INCH
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS
7.90* 5/16 14.50 3.4 50 17.2 250 76 3.00
9.50 3/8 16.00 3.4 50 17.2 250 76 3.00
12.70 1/2 20.00 2.4 35 12 175 101 4.00
19.10 3/4 29.00 2.4 35 12 175 152 6.00
25.10 1 35.00 2.4 35 12 175 178 7.00
Industrial Hose

LPG HOSE - IS 9573 - TYPE 2

LPG HOSE - IS 9573 - TYPE 2

Technical Specifications

TUBE: Black, Low Permeation Oil & Fuel Resistant Synthetic Rubber (NBR)
REINFORCEMENT: Single Braided High Tensile Steel Wire
COVER: Orange, Oil, Abrasion & Weather Resistant Synthetic Rubber
TEMP RANGE: -40°C to +70°C
APPLICATIONS: For Use In Domestic And Commercial LPG Installations
PROPERTIES: Uniform Thickness | High Pressure | Flexible
STANDARD: IS : 9573 : 2012
COLOUR: Inner Tube Black | Outer Cover Orange
MARKING: Indo-Maksson – IS : 9573 : 2012 I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM INCH
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS
9.5 3/8 16.9 25 363 100 1450 95 3.7
12.7 1/2 20.8 25 363 100 1450 120 4.7
15.9 5/8 23.5 25 363 100 1450 152 6.0
19.1 3/4 26.5 25 363 100 1450 152 6.0
Mining Hose

MINING HOSE

MINING HOSE

Technical Specifications

TUBE: Black, Oil Resistant Synthetic Rubber (NBR)
REINFORCEMENT: Double High Tensile Steel Wire Braids
COVER: Black, Synthetic Rubber Oil, Abrasion, Ozone & Weather Resistant Cover
TEMP RANGE: -40°C Approx To +100°C Continuous
APPLICATIONS: For Use With Petroleum, Synthetic Or Water Based Fluids In Hydraulic Systems. Specially Made As Per British Coal 174 Specification And Used In Underground Mining Equipment, Roof Support Systems & Long Wall Mining Applications.
PROPERTIES: Oil Resistant | Seamless | Uniform Thickness | Flexible
STANDARD: BCS 174 - 1992
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson Mining Hose BCS 174 - 1992 I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI INCH MM KG/M
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS WEIGHT
6.3 1/4 17 450 6525 1800 26100 3.9 100 0.504
9.5 3/8 21.4 380 5510 1520 22040 5.1 130 0.712
12.7 1/2 26.5 365 5295 1450 21025 5.9 150 0.977
16.0 5/8 30.0 280 4060 1120 16240 7.5 190 1.300
19.0 3/4 33.6 280 4060 1105 16025 9.1 230 1.514
25.4 1 40.6 215 3120 860 12470 11.8 300 1.756
31.7 1.1/4 47.5 175 2540 690 10005 15.0 380 2.090
38.4 1.1/2 54.1 150 2175 585 8485 17.7 450 2.763
51.1 2 66.8 115 1670 450 6525 23.6 600 3.541
Hydraulic Hose

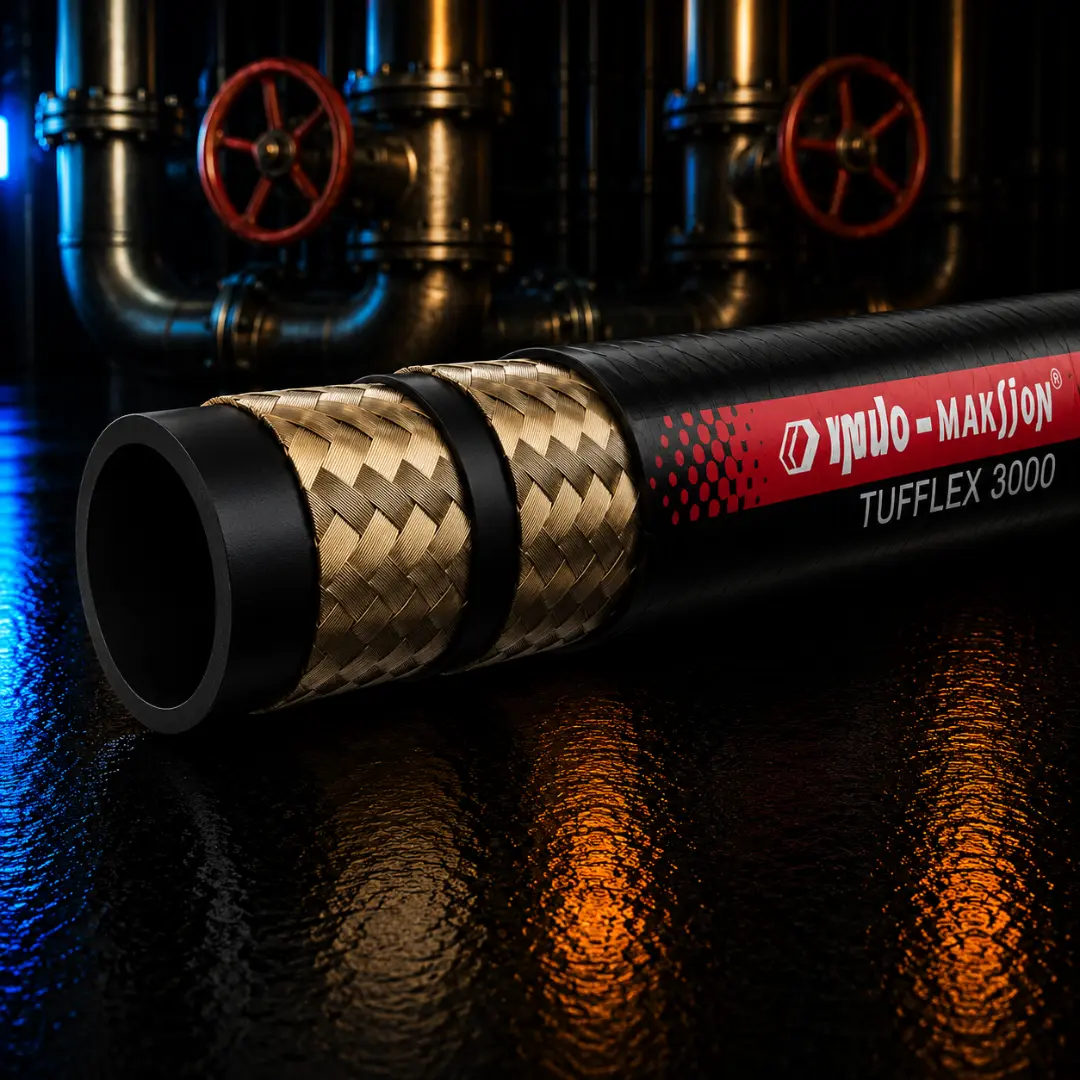

TUFFLEX 3000 R17

TUFFLEX 3000 R17

Technical Specifications

TUBE: Black, Oil Resistant Synthetic Rubber (NBR)
REINFORCEMENT: Single Or Double Braided High Tensile Steel Wire
COVER: Black, Oil & Abrasion Resistant Synthetic Rubber
TEMP RANGE: -40°C to +100°C (+120°C Intermittent)
APPLICATIONS: Petroleum Based Hydraulic Fluids And Lubricating Oils With Extra Flexible Routing
PROPERTIES: Uniform Thickness | High Pressure | Flexible
STANDARD: SAE 100 R17
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – SAE 100 R17 I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI MM
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS
6.4 1/4 13.0 210 3050 840 12200 50
8.0 5/16 14.8 210 3050 840 12200 55
9.6 3/8 16.9 210 3050 840 12200 65
12.7 1/2 20.2 210 3050 840 12200 90
15.9 5/8 23.8 210 3050 840 12200 100
19.1 3/4 27.9 210 3050 840 12200 120
25.4 1 35.5 210 3050 840 12200 150
Automotive Hose

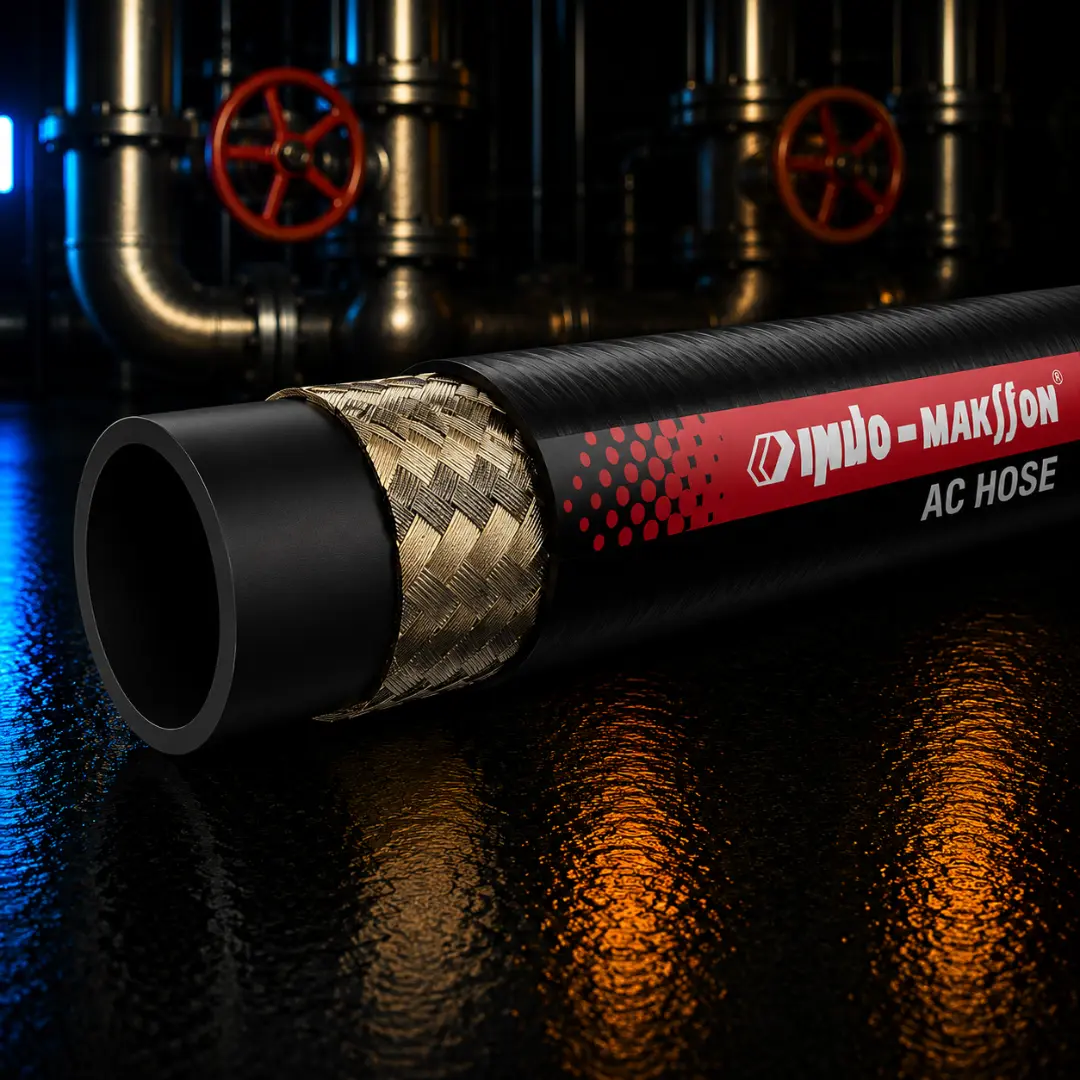

AC HOSE

AC HOSE

Technical Specifications

TUBE: Black Colour, Synthetic Rubber Resistant To R134a
REINFORCEMENT: Single Steel Wire Braid
COVER: Black Colour, Synthetic Rubber Resistant To Weather
TEMP RANGE: -30°C to +125°C Approx
APPLICATIONS: Car, Truck And Agricultural Machine Air Conditioning Systems
RECOMMENDED FLUIDS: Freon R134a And PEG Lubricant Oils
PROPERTIES: Resistant To R134a | Uniform Thickness | Flexible
COLOUR: Inner Tube Black | Outer Cover Black
MARKING: Indo-Maksson – Air Conditioning Hose I.D. W.P. Made In India
MM INCH OD BAR PSI BAR PSI INCH MM
ID OD WORKING PRESSURE BURST PRESSURE BENDING RADIUS
22.0 7/8 32.0 35 500 150 2175 9.8 250
28.6 1.1/8 38.7 35 500 150 2175 11.8 300
